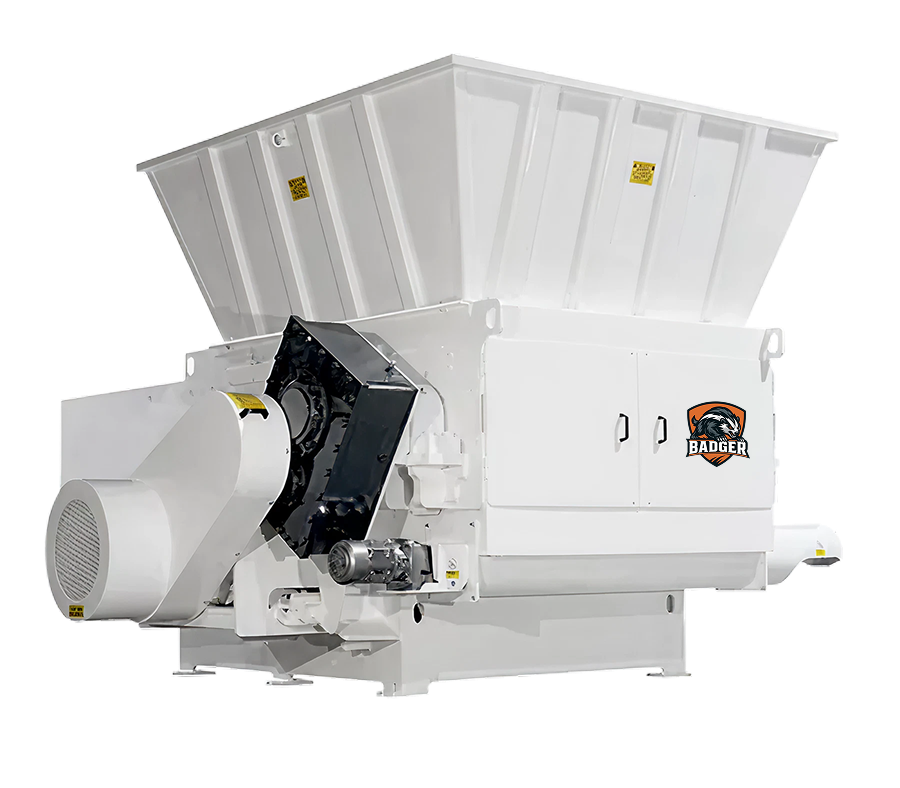

XRV700 Plastic
Common Applications
Plastic Recycling, Plastic Purgings, Plastic Reclaim
Features
Screen Sections for Easy Handling
Optional Hydraulic Screen Carriage
Replaceable Anvil Supports and Side Wall Rotor Seals
Optional Grooved Bedplate
Drive Train Protection System
Easy Service Access
V-Rotor Cutterhead Design Yields Maximum Output
Fluid Clutch
Rugged Steel Frame
Ram Track™ Guide System
Specs
| Motor HP | 125, 150, 200 |
| Cutting Chamber | 70″ x 69″ |
| Ram Stroke | 50″ |
| Rotor Diameter | 20″ |
| Grinding Head Speed | 50-150 rpm |
| Frame Thickness | 5/8″ |
| Number of Cutter Teeth | 98 |
| Shaft Diameter | 4″ |
| Mid-Range Hopper Volume | 5.7 Cubic Yards |
| Floor Area of Unit | 130″ x 143″ |
| Shipping Weight | 20,000 lbs. |
* Specifications are subject to change
** The output of these machines can be optimized for your application by selecting different screens, amount of cutter teeth, cutter teeth placement, and rotor selection”
