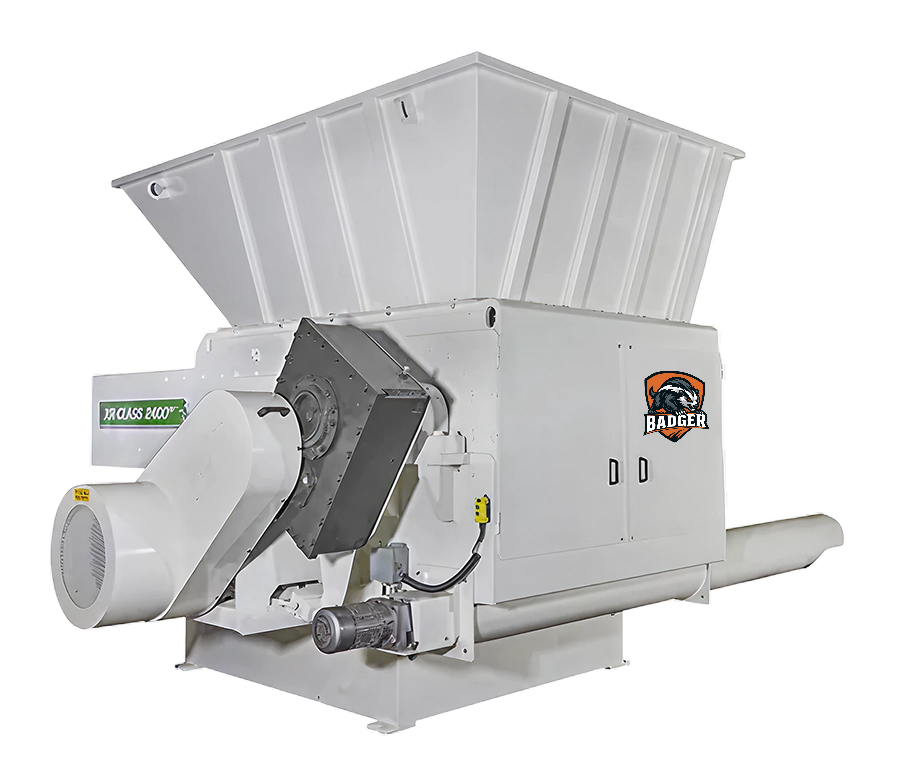

XRV2400 Paper
Common Applications
Paper Recycling
Printing Paper Waste
Secure Information Destruction
Features
Replaceable Anvil Supports and Side Wall Rotor Seals
Easy Service Access, V-Rotor Cutterhead Yields Maximum Output
Hydraulic Screen Carriage
Extreme Duty Gear Box
Drive Train Protection System
Fluid Clutch
Rugged Steel Frame
Zero Gap Ram™ Wide UHMW Side & Bottom Bearing Guide Plates
Single Cylinder with Linear Alignment Coupler, Prevents any Side Load of Cylinder
Optional Precision Machined Grooved Bed Plate
Exclusive Dura-Glide Ram System
Specs
| Motor HP | 150, 200 |
| Cutting Chamber | 70″ x 78″ |
| Ram Stroke | 60″ |
| Rotor Diameter | 24″ |
| Grinding Head Speed | 50-150 rpm |
| Frame Thickness | 5/8″ |
| Number of Cutter Teeth | 117 |
| Shaft Diameter | 24″ |
| Mid-Range Hopper Volume | 7 Cubic Yards |
| Floor Area of Unit | 134″ x 168″ |
| Shipping Weight | 29,000 lbs. |
* Specifications are subject to change
** The output of these machines can be optimized for your application by selecting different screens, amount of cutter teeth, cutter teeth placement, and rotor selection”
